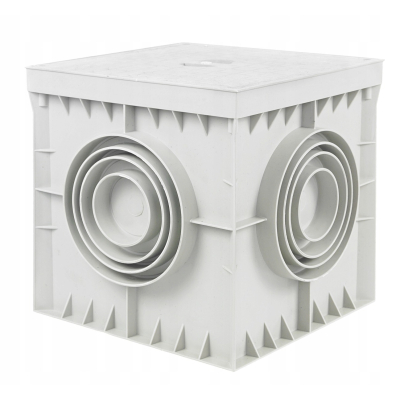

Zineric Ground Inspection and Measuring Chamber Small 20x20cm RAL 7035 Grey

The ground inspection and measuring chamber is designed for installation on hardened surfaces such as paving blocks, concrete, or asphalt. It is used to inspect grounding connections (earth electrode – grounding conductor) and to perform ground resistance measurements. It is suitable for lightning protection, electrical, and industrial systems where quick and safe inspection of grounding networks is required.

Made of reinforced polypropylene, the chamber offers high mechanical resistance (IK10 rating) and full resistance to weather conditions. The press-fit cover allows for quick and convenient access to the interior while ensuring the cover remains stable and securely fitted.

Standard entry diameters (50, 75, 90, 110 mm) make it easy to connect to various conduit systems. The compact 200x200x200 mm size enables easy installation even in confined spaces.

Technical data:

Colour: RAL 7035 (grey)
Material: Reinforced polypropylene
Dimensions: 200 x 200 x 200 mm
Load capacity of cover: 2.1 kN (210 kg)
Entry diameters Ø: 50, 75, 90, 110 mm
Cover fastening: Press-fit
Impact resistance: IK10

Application:
Ideal for electrical facilities, industrial sites, transformer stations, and lightning protection systems.

Note:
Not suitable for areas exposed to vehicular traffic – does not meet load requirements for public roads.
