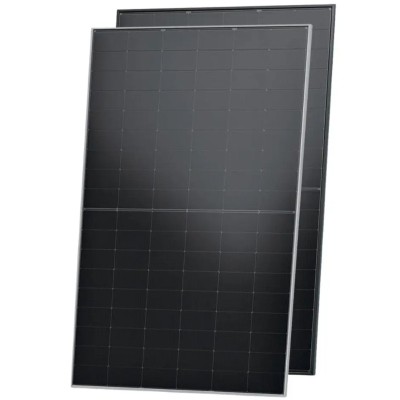

Jinko Tiger Neo N-type 515W Solar Panel (JKM515N-54HL4M-BDV)

N-Type Technology | Bifacial | Dual Glass | 30mm Black Frame

The Jinko Tiger Neo is a high-performance solar module that combines innovative N-type TOPCon cell technology with a bifacial dual-glass design and a sleek black frame. Thanks to the use of dual-glass construction, this panel offers maximum resistance to environmental factors and degradation, making it an ideal choice for installations requiring both peak efficiency and premium aesthetics.

Key Features and Benefits:

• N-type TOPCon Technology: Delivers higher efficiency (23.16%), lower LID and LeTID degradation, and excellent energy harvest in low-light conditions (mornings, evenings, and cloudy days).

• Elegant Black Frame: The 30mm black anodized aluminum frame provides a modern, high-end look that integrates perfectly with dark roof tiles.

• Bifacial Power Generation: The module harvests energy from both sides, allowing for additional power gain (up to 25%) depending on the surface albedo (reflectivity) of the ground.

• HOT 3.0 Technology: JinkoSolar’s latest generation of cell processing, enhancing module reliability and operational efficiency.

• Dual Glass Design: Double-sided reinforced glass (2.0mm + 2.0mm) provides superior protection against moisture, ammonia, and salt corrosion while minimizing the risk of micro-cracks.

• SMBB Technology: An optimized multi-busbar layout improves light trapping and current collection, increasing the module's power output and long-term durability.

Electrical Characteristics (STC)

• Maximum Power (Pmax): 515 W

• Module Efficiency: 23.16%

• Open Circuit Voltage (Voc): 40.89 V

• Voltage at Maximum Power (Vmp): 34.62 V

• Short Circuit Current (Isc): 15.78 A

• Current at Maximum Power (Imp): 14.88 A

• Power Tolerance: 0 to +3%

Mechanical Parameters

• Cell Type: N-type Mono-crystalline

• Number of Cells: 108 (54x2)

• Dimensions: 1961 x 1134 x 30 mm

• Weight: 27.0 kg

• Front Glass: 2.0 mm, Anti-reflection Coating

• Back Glass: 2.0 mm, Heat Strengthened Glass

• Frame: Anodized Aluminium Alloy (Black)

• Junction Box: IP68 Rated (3 bypass diodes)

• Connector: MC4 / MC4-EVO2 compatible

Warranty and Reliability

• Product Warranty: 15 Years for materials and processing.

• Linear Power Warranty: 30 Years of performance protection.

• First-year Degradation: Maximum 1%.

• Annual Degradation (Years 2-30): Only 0.40% per year.

• 30-Year Performance: Guaranteed minimum 87.4% of initial power output after 30 years.

• Mechanical Strength: Certified snow load of 5400 Pa and wind load of 2400 Pa.
