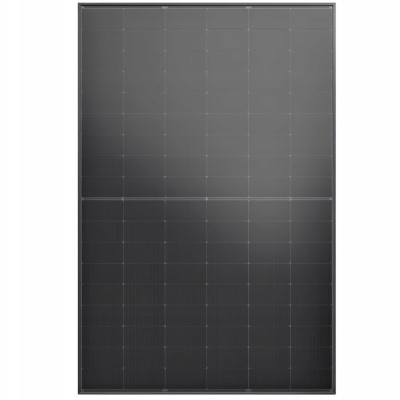

Jinko 510W Black Frame Solar Panel JKM510N-54HL4M-BDV

Jinko Solar Tiger Neo 510W (JKM510N-54HL4M-BDV) – Bifacial N-Type Dual Glass Module

The Jinko Solar Tiger Neo series represents the cutting edge of photovoltaic innovation. Powered by N-Type TOPCon technology, the 510W Bifacial Dual Glass module delivers industry-leading efficiency, extreme durability, and superior energy yields even in low-light or high-temperature environments.

Core Technological Advantages:

• N-Type TOPCon Technology: N-type cells provide higher efficiency and are immune to LID (Light Induced Degradation) and LeTID. This ensures better long-term performance and exceptional results under shaded or cloudy conditions.

• Bifacial Power Gain: The dual-sided design allows the module to harvest sunlight from the rear side. Depending on the surface reflectivity (albedo), this significantly boosts total energy production and lowers the Levelized Cost of Electricity (LCOE).

• Dual Glass Construction: Featuring 2.0 mm heat-strengthened glass on both sides, this module is built to withstand harsh environments. It offers superior resistance to salt mist, ammonia, and high mechanical loads compared to traditional backsheet modules.

• SMBB Technology: The Super Multi Busbar design improves light trapping and current collection, enhancing both the power output and the overall reliability of the module.

• Anti-PID Guarantee: Minimized degradation caused by Potential Induced Degradation (PID) through optimized cell production and high-quality material control.

Technical Specifications (STC):

• Maximum Power (Pmax): 510 Wp

• Maximum Power Voltage (Vmp): 34.39 V

• Maximum Power Current (Imp): 14.83 A

• Open-circuit Voltage (Voc): 40.72 V

• Short-circuit Current (Isc): 15.73 A

• Module Efficiency: 22.93%

• Power Tolerance: 0~+3%

• Temperature Coefficient of Pmax: -0.29%/°C

Mechanical Characteristics:

• Cell Type: N-type Mono-crystalline (108 cells)

• Dimensions: 1961 × 1134 × 30 mm

• Weight: 27.0 kg

• Glass (Front/Back): 2.0 mm Anti-reflection coating / 2.0 mm Heat-strengthened glass

• Frame: Anodized Aluminium Alloy

• Junction Box: IP68 Rated

• Connector Type: JK03M / JK03M2 or MC4-EVO2 compatible

Warranty & Reliability:

Jinko Solar provides one of the most competitive linear power warranties in the industry, ensuring your investment is protected for decades.

• Product Warranty: 15 Years

• Linear Power Warranty: 30 Years

• Annual Degradation: Over 30 years, only 0.40% per year

• First-year Degradation: < 1%

• Certifications: IEC61215, IEC61730, ISO9001, ISO14001, ISO45001
