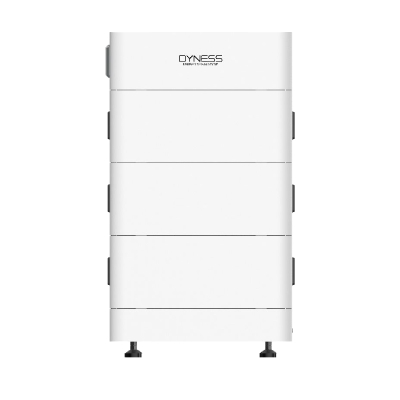

Dyness Tower T10 Energy Storage System

Dyness Tower T10 Energy Storage System includes:

• 3x Dyness HV9637 LiFePO4 3.55 kWh
• 1x Control Unit Dyness T9637-BMS Tower BDU+BASE

1. Dyness HV9637 LiFePO4 3.55 kWh

The Dyness HV series energy storage units are specially designed with individual customers in mind, providing energy in an efficient and reliable way. This high-voltage battery module is ideal for use in residential construction. It has a modular design, utilizes advanced LiFePO4 technology for high specification, and achieves a total capacity of up to 21.31 kWh.

Specifications:

• Capacity: from 7.10 kWh to 21.31 kWh
• Built-in DC circuit breaker ensures safe system operation.
• Battery model: HV9637, high-voltage, 90 V-325 V.
• Modular design for easy transportation, installation, and maintenance.
• String protection system: short-circuit protection, wireless connection, and partial lifting handles for each battery module.
• IP54 protection rating.

Technical Data:

• Protection level: IP54
• Charging temperature range: 0–50°C
• Discharging temperature range: -10–50°C
• Supported battery models: HV9637
• Module configuration: Series
• Communication: CAN
• Nominal battery capacity: 3.55 kWh
• Gross weight: 43 kg
• Certifications: TUV/CE/IEC 62619/UL 1973

2. Control Unit Dyness T9637-BMS Tower BDU+BASE

The energy management system Dyness BDU+BASE T9637-BMS performs upstream control functions, protecting against low voltage, overvoltage, overheating, and ensuring SOC-SOH monitoring.

Parameters:

• Recommended charging/discharging current: 18.5 A
• Voltage range: 48-1000 V
• Weight: 23 kg
• Dimensions: 304 x 380 x 240 mm
• Protection level: IP54
