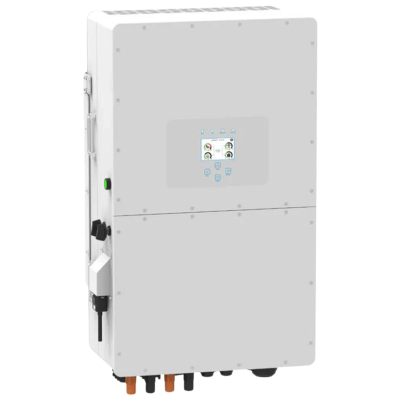

DEYE SUN-50K-SG01HP3-EU-BM4 Hybrid Inverter 50kW 3PH 4MPPT

DEYE hybrid inverter SUN-50K-SG01HP3-EU-BM4 50kW

Distinguishing features of the DEYE inverter:

• 100% unbalanced power, each phase; max. output up to 50% of rated power.
• Can be connected to DC and AC to upgrade an existing solar system.
• Max. 16 in parallel for on- and off-grid operation; support for multiple batteries in parallel.
• Max. charge/discharge current: 74A.
• High-voltage battery, higher capacity.
• 6 battery charge/discharge periods.
• Supported energy storage from diesel generator.

Technical specifications of the DEYE inverter

Model: SUN-50K-SG01HP3-EU-BM4

Battery input data:

• Battery type: Lead-acid or lithium-ion.
• Battery voltage range: 200~700 V.
• Max. charging current: 37+37 A.
• Max. discharge current: 37+37 A.
• Number of battery inputs: 2.
• Charging curve: 3 stages / equalisation.
• Lithium-ion battery charging: Self-adaptation to BMS.

PV string input:

• Max. DC input power: 65,000 W.
• Max. DC input voltage: 1000 V.
• Starting voltage: 160 V.
• MPPT range: 200-850 V.
• Minimum DC input voltage: 150 V.
• Voltage range. DC at full load: 450-850 V.
• Rated DC input voltage: 625 V.
• PV input current: 36+36+36+36 A.
• Max. PV ISC: 50+50+50+50 A.
• Number of MPPT / Strings per MPPT: 4/2+2+2+2.

AC output data:

• Rated AC output and UPS power: 50000 W.
• Max. AC output power: 55000 W.
• Rated AC output current: 75.8 A.
• Max. AC current: 83.3 A.
• Max. continuous AC current: 100 A.
• Peak power (off-grid): 2 times rated power, 10 S.
• Generator input/intelligent charging/AC coupling current: 75.8 A / *180 A / 75.8 A.

Efficiency:

• Max efficiency: 97.60%.
• Euro efficiency: 97.00%.
• MPPT efficiency: 99.90%.

Certifications and standards:

• Network regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11.
• EMC safety / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.

Main data:

• Size: 560.5 W × 837 H × 319 D mm.
• Weight: 60 kg.
• Noise: <45 dB.
• Degree of protection: IP65.
• Installation style: Wall mounting.
