DEYE BMS HVB750V/100A-EU BMS for High Voltage Batteries

Deye BMS for High Voltage Batteries HVB750V/100A-EU

Model: HVB750V/100A-EU

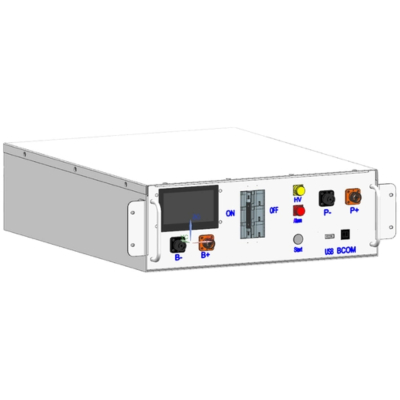

The Deye high-voltage battery pack control box (HVB750V/100A-EU) is a high-quality control unit designed for high-voltage battery packs (BOS-GM5.1).

This control box enables efficient and safe management of high-voltage batteries and offers a variety of functions to ensure smooth operation of battery systems.

With operating voltages from 120 to 750 VDC, the Deye high-voltage battery pack control box is ideal for various applications such as renewable energy systems and industrial energy storage solutions.

It offers a nominal charge and discharge current of 100 A, with a maximum charge/discharge current of 125 A. This enables efficient charging and discharging of batteries to meet the energy needs of the application.

Technical specifications:

• Model: HVB750V/100A-EU
• Operating voltage: 120-750 VDC
• Nominal Charge/Discharge Current: 100 A
• Maximum Charge/Discharge Current: 125 A
• DC Input Rating: 12±2%V/4.15A
• Operating Temperature Range: -20~65°C
• Degree of Protection: IP20
• Dimensions (Width x Depth x Height): 440 x 570 x 150 mm
• Weight: 15.5 kg

Scope of supply:

1. 120-Ohm termination resistor
2. 140 mm communication cable
3. 220 mm power cable
4. 1.5 m power cable (US version)
5. 2.1 m power cable (EU version)
6. Power plug

Advantages:

• High Efficiency: a nominal charge/discharge current of 100 A allows efficient power management.
• Wide Operating Temperature Range: Allows operation in harsh environmental conditions.
• Compact Dimensions: Allows easy integration into existing systems.

The HVB750V/100A-EU BMS from Deye is a reliable and efficient solution for high-voltage battery management systems. With its advanced features and wide operating temperature range, it is the ideal choice for a variety of applications where stability and performance are required.
