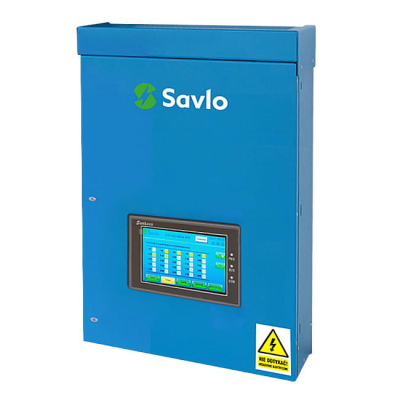

Savlo Active reactive power compensator SVG mini 50kVar
SAVLO Active Power Factor Compensator – Modern Solution for Energy Quality and Efficiency
SAVLO is an advanced active power factor compensator designed for efficient reactive power reduction and harmonic compensation. Thanks to cutting-edge technology, it delivers high performance, operational safety, and significant energy savings.
Key Benefits:
-
Wide power range: from 10 to 100 kVar
-
Ultra-fast response time: less than 10 ms
-
High compensation efficiency: power factor above 95%
-
Silent operation: noise level below 56 dB – ideal for technical rooms
-
Scalability: parallel operation with unlimited number of modules
Versatile Applications:
-
Supports three-phase systems: both 3-wire and 4-wire
-
Fully compatible with photovoltaic (PV) installations – works with any solar system
-
Ideal for use in:
-
office buildings
-
schools
-
industrial facilities
-
energy sector infrastructure
-
Advanced Protection Features:
Equipped with built-in protections for:
-
overload
-
overvoltage
-
frequency variations
-
short circuits
Compact and Durable Design:
-
Smallest in its class – compact size for easy installation and transport
-
Built with high-quality components for long service life
-
Designed for use in hybrid power factor compensation systems (capacitive and inductive)
Technical Specifications:
Parameter | Value |
---|---|
Rated voltage | AC 400V (-10% ~ +10%) |
Operating frequency | 50 Hz ± 5% |
Compensation power | 10–100 kVar |
Power factor correction | >95% |
Efficiency | >97% |
Protections | Overload, overvoltage, frequency, short circuit |
Communication | Dual-channel RS485 interface |
Mounting | Wall-mounted / rack / hanging |
Ingress protection | IP20 |
Noise level | <56 dB |
Available Models and Dimensions:
Mini Compensator 400V:
-
10 kVar – 230×365×88 mm
-
15 kVar – 230×365×88 mm
-
20 kVar – 230×365×88 mm
Standard Compensator 400V:
-
35 kVar – 378×525×200 mm
-
50 kVar – 418×556×200 mm
-
75 kVar – 503×611×232 mm
-
100 kVar – 573×621×250 mm
Optimise Your Energy Usage with SAVLO
Choose SAVLO to:
✔ Reduce power losses
✔ Improve energy quality
✔ Extend the lifespan of your electrical system
✔ Lower operational costs
Manufacturer | Savlo |
---|---|
Weight | 30.000000 |
Warranty | 1 |
Width | 41.80 cm |
Height | 55.60 cm |
Length/Depth | 20.00 cm |
