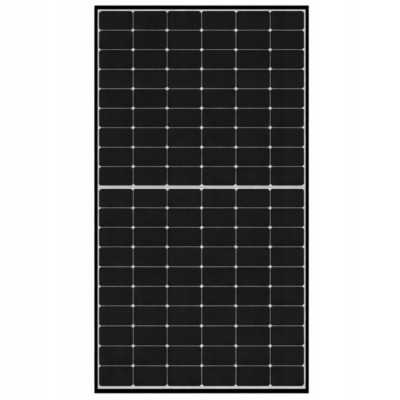

Jinko Tiger Neo N-type 455W Solar Panel (JKM455N-48HL4M-DV)

N-Type Technology | Dual Glass | Monofacial | 30mm Black Frame

The Jinko Tiger Neo is a high-performance solar module featuring advanced N-type TOPCon technology combined with a highly durable dual-glass construction. This 455W model with a sleek black frame is engineered for maximum reliability, offering superior protection against environmental factors. The dual-glass design ensures long-term resistance to degradation, making it an excellent choice for both residential and commercial solar systems.

Key Features and Advantages:

• N-type TOPCon Technology: Delivers higher power output, lower LID/LeTID degradation, and improved energy production in low-light environments.

• Dual Glass Construction: The 2.0mm + 2.0mm heat-strengthened glass on both sides provides exceptional protection against moisture, salt mist, and ammonia.

• HOT 3.0 Technology: The latest cell processing innovation from Jinko Solar, enhancing module conversion efficiency and long-term reliability.

• SMBB Technology: Optimized light trapping and current collection improve module power output and overall panel durability.

• Extreme Mechanical Strength: Certified to withstand heavy static loads of up to 6000 Pa (front side/snow) and 4000 Pa (rear side/wind).

• Anti-PID Guarantee: Minimized potential-induced degradation through optimized cell production and rigorous material control.

Electrical Characteristics (STC)

• Maximum Power (Pmax): 455 W

• Module Efficiency: 22.77%

• Open Circuit Voltage (Voc): 36.21 V

• Voltage at Maximum Power (Vmp): 30.48 V

• Short Circuit Current (Isc): 15.86 A

• Current at Maximum Power (Imp): 14.93 A

• Power Tolerance: 0 to +3%

Mechanical Parameters

• Cell Type: N-type Monocrystalline

• No. of Cells: 96 (48x2)

• Dimensions: 1762 x 1134 x 30 mm

• Weight: 24.0 kg

• Front Glass: 2.0 mm, Anti-reflection Coating

• Back Glass: 2.0 mm, Heat Strengthened Glass

• Frame: Anodized Aluminium Alloy (Black)

• Junction Box: IP68 Rated

Warranty & Long-Term Performance

• Product Warranty: 15 Years for materials and processing.

• Linear Power Warranty: 30 Years of performance protection.

• First-year Power Degradation: Maximum 1%.

• Annual Power Degradation (Years 2-30): Only 0.40% per year.

• Power Output after 30 Years: Guaranteed minimum 87.4% of initial power output.
