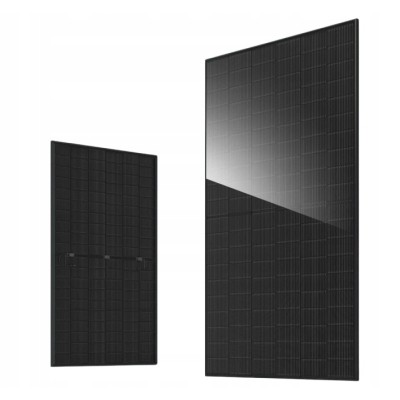

JA Solar JAM60D41 500W Bifacial N-Type (LB) Solar Module - Full Black

Series: Deep Blue 4.0 Pro | N-Type Technology | Bifacial | Double Glass

The JA Solar 500W module from the Deep Blue 4.0 Pro series is a premium photovoltaic solution that combines industry-leading N-type cell technology with a sleek Full Black design. This bifacial, dual-glass module is engineered for maximum energy yield, enhanced durability, and superior aesthetics, making it an ideal choice for high-end residential and commercial projects.

Key Advantages and Features:

• N-Type and Bifacial Technology: N-type cells offer near-zero LID (Light Induced Degradation). The Double Glass construction allows for energy generation from the rear side, significantly increasing total energy harvest.

• Full Black Aesthetics: The black frame and refined finish provide a seamless, modern look that complements contemporary architecture perfectly.

• High Output and Efficiency: Delivering 500W of power with an efficiency of 22.6%, this module ensures optimal use of available roof space.

• Extended Warranty: Benefit from a 25-year product warranty and a 30-year linear power output warranty for long-term peace of mind.

• Minimal Degradation: Power loss is limited to 1% in the first year and only 0.4% annually thereafter. The module is guaranteed to maintain at least 87.4% of its initial power after 30 years.

• Mechanical Durability: Certified to withstand heavy snow loads of up to 5400 Pa (front) and wind loads of up to 2400 Pa (rear).

Electrical Specifications (STC)

• Maximum Power (Pmax): 500 W

• Module Efficiency: 22.6%

• Open Circuit Voltage (Voc): 45.00 V

• Voltage at Maximum Power (Vmp): 38.26 V

• Short Circuit Current (Isc): 14.05 A

• Current at Maximum Power (Imp): 13.07 A

• Power Tolerance: 0 ~ +3%

• Bifacial Gain: With a 10% rear-side gain, total power output can reach up to 540W.

Mechanical Parameters

• Dimensions: 1953 x 1134 x 30 mm

• Weight: 27.3 kg

• Cell Type: Monocrystalline N-Type (120 cells)

• Glass: Double glass (2.0 mm front / 2.0 mm rear)

• Frame: Black anodized aluminum alloy

• Junction Box: IP68 rated, 3 bypass diodes

• Connector: MC4 compatible (QC 4.10-351 / MC4-EVO2A)

Certifications

• IEC 61215, IEC 61730

• ISO 9001, ISO 14001, ISO 45001

• CE mark compliance
