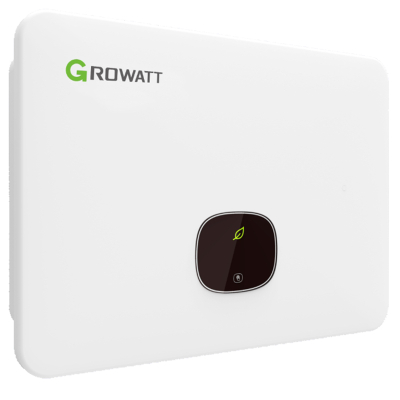

Growatt MID11KTL3-XH AFCI Inverter 11kW 3PH 2MPPT

Login to See Price
3 pcs
Availability:
24h Bialystok
0 pcs
72h Central
3 pcs
SKU
2778
Growatt MID11KTL3-XH AFCI Inverter 11kW 3PH 2MPPT is available to buy in increments of 1
MOD TL3-XH series inverters are universal, highly efficient transformerless 3-phase inverters.
Growatt inverters are characterised by very high efficiency parameters and two independent MPPT inputs.

GROWATT products meet all European standards and norms and have the necessary certificates, including TUV.

Three-phase inverter with battery output - cooperation with Growatt batteries.

Photovoltaic inverters cooperating with batteries

  • TL3-XH photovoltaic inverters prepared to cooperate with batteries is a novelty that Growatt New Energy is introducing to the Polish market.
  • This system can be built as an emergency power supply system, so that in the event of a power outage from the grid, the devices in our home will be able to work without problems.
How do the GROWATT MOD TL3-XH photovoltaic inverters work?
  • Dedicated modular batteries and other products such as the Growatt GroHome are designed to increase the energy consumption of photovoltaic panels in real time.
  • The Growatt GroHome can, for example, be used to control the operation of a heat pump based on the product from the photovoltaic panels.
  • The reason for this is balancing with the power industry, which in other countries is no longer beneficial from year to year.
  • This is a result of the state of the grid, which, due to its old architecture, has limitations when working with a large number of photovoltaic installations.
  • To the rescue come energy storage systems and products to maximise auto consumption.
  • This is a policy that Growatt New Energy introduced earlier this year and will continue to follow for the next couple of years.
Key features:
  • Operating mode: On-Grid/Off-Grid
  • AC/DC overvoltage protection: Class II/II
  • Protection class: IP66
  • AFCI protection
  • Display: OLED
Input data (DC):
  • Max. recommended PV power (for STC module): 22000W
  • Max. DC voltage: 1100V
  • Initial voltage: 200V
  • Nominal voltage: 600V
  • MPPT voltage range: 160V-1000V
  • Number of trackers: 2
  • Number of PV chains per tracker: 2/2
  • Max. input current per 1 tracker: 32A/32A
  • Max. short-circuit current per 1 tracker: 40A/40A
Input data (DC battery):
  • Compatible battery APX HV battery system (5kWh~30kWh)
  • Operating voltage range 600 V-950 V
  • Max. operating current: 25A
  • Max. charging power: 15000W
  • Max. discharge power: 11000W*
Output data (AC):
  • AC nominal power: 11000W
  • Max. AC apparent power: 12100VA*
  • Nominal AC voltage (range*): 220V/380V, 230V/400V (340-440V)
  • AC mains frequency (range*): 50/60 Hz (45-55Hz/55-65Hz)
  • Max. output current: 18.3A
  • Adjustable power factor: 0.8 capacitive ...0.8 inductive
  • THDi: <3%
  • AC mains connection type: 3W+N+PE
Efficiency:
  • MAX. efficiency: 98.75%
  • Efficiency according to European standards: 98.5%
Protections:
  • DC reverse polarity protection: Yes
  • DC switch: Yes
  • AC/DC surge protection: Type II / Type II
  • Insulation resistance monitoring: Yes
  • AC short-circuit protection: Yes
  • Ground fault monitoring: Yes
  • Network monitoring: Yes
  • Anti-islanding protection: Yes
  • Differential current monitoring unit: Yes
  • Chain fault monitoring: Yes
  • AFCI protection: Yes
General Data:
  • Dimensions (W/H/D): 580/435/230mm
  • Weight: 29.5kg
  • Operating temperature range: -25°C ... +60°C
  • Power consumption at night: < 5.5W
  • Topology: Transformerless
  • Cooling: Free convection
  • Degree of protection: IP66
  • Relative humidity: 0~100%
  • Altitude: 4000m
  • DC connection: H4/MC4 (optional)
  • AC connection: Connector
  • Screens: OLED+LED/WIFI+APP
  • Interfaces: USB/RS485/WiFi/GPRS/LAN/RF - Yes/Yes/Optional/Optional/Optional.
  • Warranty 10 years - Yes
Certifications:
  • CE, VDE0126, Greece, EN50549-1, C10/C11, VFR 2019, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21/CEI0-16, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2
More Information
Manufacturer Growatt
Weight 31.000000
Width 58.00 cm
Height 43.50 cm
Length/Depth 23.00 cm
Number of Phase 3-phase
Power kW 11.00 kW
Number of MPPT 2
Start Voltage 200.00 V
Max Input Current 32.00 A
Max DC Voltage 1,100.00 V
Warranty 10
