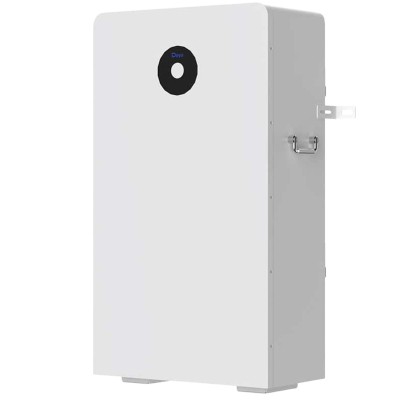

Deye RW-F16 (Low Voltage) — 16 kWh Battery Module

The Deye RW-F16 is a high-capacity, low-voltage energy storage solution specifically designed for residential and small commercial applications. Utilizing ultra-safe LiFePO4 (Lithium Iron Phosphate) chemistry, this module offers a long cycle life, high discharge capability, and exceptional reliability. It is the perfect backbone for modern hybrid solar systems.

Key Features and Advantages:

• Large Capacity: With a 16 kWh nominal capacity, this module provides significant energy storage to maximize self-consumption and energy independence.

• High Power Performance: Supports a continuous charge/discharge current of up to 160A and peak current of up to 300A, capable of handling high-demand household appliances.

• LiFePO4 Technology: The safest lithium battery technology available, offering over 6000 cycles and superior thermal stability.

• System Scalability: Designed for easy expansion. Multiple modules can be connected in parallel to increase total system capacity as energy needs grow.

• Smart Management: The integrated BMS ensures optimal cell health, while CAN/RS485 communication protocols provide seamless integration with Deye and other hybrid inverters.

Technical Specifications:

• Nominal Voltage: 51.2 V

• Nominal Capacity: 314 Ah (16.0 kWh)

• Usable Energy (90% DOD): approx. 14.4 kWh

• Charging/Discharging Current (Continuous): 160 A

• Peak Current: approx. 300 A (short-term)

• Cycle Life: > 6000 cycles (depending on conditions)

• Protection Rating: IP20 (Indoor use)

• Dimensions: approx. 480 x 830 x 230 mm

• Weight: approx. 120-125 kg

Applications:

The RW-F16 module is engineered for photovoltaic systems with energy storage, serving as:

1. Emergency Backup: Providing reliable power during grid outages.

2. Self-Consumption Optimization: Storing excess solar energy during the day for use at night.

3. Load Shifting: Managing energy usage to reduce electricity costs during peak tariff hours.

User Benefits:

• Safety First: LiFePO4 chemistry is chemically stable and significantly reduces the risk of fire or explosion.

• Installation Flexibility: Supports both wall-mounted and floor-standing installations to fit various space requirements.

• Remote Support: Supports remote monitoring and firmware updates for simplified maintenance and long-term performance optimization.
